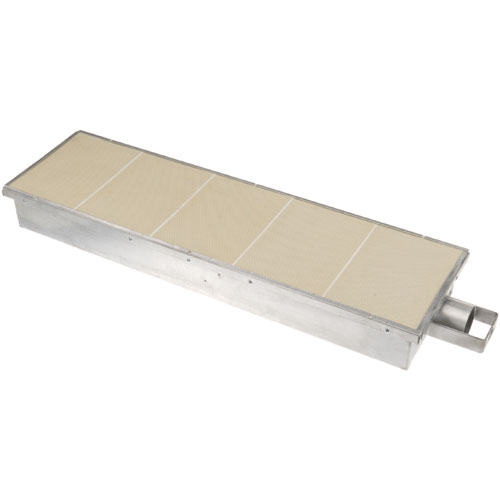

American Range A14020 Infrared Burner 27- 5/8" X 8 1/8"

Radiant Heat Generation:
Converts fuel energy into infrared radiant heat and directs the thermal energy toward the food or cooking surface. Unlike heating methods that primarily rely on circulating hot air, infrared radiation provides direct surface heating. This concentrated heat supports applications such as melting cheese, browning food surfaces, broiling, and finishing dishes.

Burner Operation:
Provides the primary heat source during the cheese melter's cooking cycle. The burner works as part of the appliance's heating system to produce the thermal output required for the selected cooking process. Consistent ignition and stable burner performance help maintain reliable heating, while issues such as irregular flames, delayed ignition, or reduced output can affect cooking results.

Replacement Guidelines:
Replace the Cheese Melter Infrared Burner if it is cracked, damaged, deformed, burned, or no longer produces the required infrared heat output. The part number A14020 and dimensions 27-5/8" × 8-1/8" should be verified before replacement to ensure the correct infrared burner is selected. Replace the burner if deterioration affects heat generation, burner integrity, installation fit, or normal cheese melter operation.

Common Failure Symptoms:

• Cheese melter does not produce the expected radiant heat.
• Heating output becomes reduced or inconsistent.
• Food surfaces take longer to melt or brown.
• Heating is uneven across the intended cooking area.
• Burner shows visible physical deterioration or damage.

Equipment Compatibility:
Designed for compatible American Range commercial cheese melters requiring the specified A14020 infrared burner configuration. Verify the equipment model and manufacturer part number before ordering.

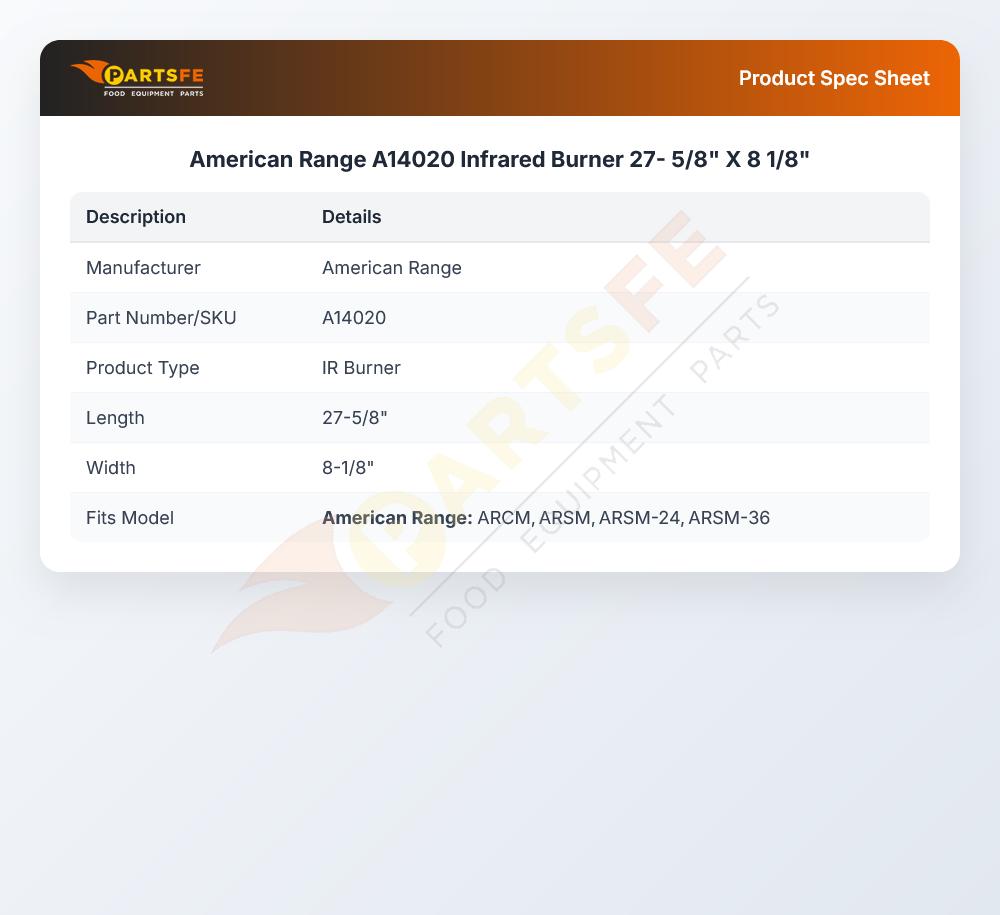

Technical Specifications:
Manufacturer: American Range
Part Number: A14020
Product Type: Infrared Burner
Appliance Type: Commercial Cheese Melter

Step1: Turn off the appliance and disconnect all power and gas supply.

Step2: Remove the grates and any existing burner components.

Step3: Carefully lift out the old burner and clean the mounting area.

Step4: Place the new infrared burner in position, ensuring proper alignment.

Step5: Reconnect any ignition or gas fittings securely.

Step6: Test the burner for even heat and proper operation before full use.

• What maintenance is required for the American Range A14020 Infrared Burner?

  Regularly inspect the burner surface for grease buildup, cracks, or blocked ports that may affect heat distribution. Clean the infrared elements carefully to maintain efficient combustion and consistent performance. Check gas connections and mounting hardware for tightness and proper alignment. Always shut off gas supply and allow the burner to cool before servicing for safety.

• What are common issues with the American Range A14020 Infrared Burner?

  • Uneven heating or hot spots.
  • Burner failing to ignite.
  • Cracks or damage from high heat.
  • Clogging from grease or food buildup.

• What is the American Range A14020 infrared burner used for?

  It provides concentrated radiant heat for melting, browning, broiling, and finishing food in compatible commercial cheese melters.

• How does an infrared burner generate cooking heat?

  It converts fuel energy into infrared radiant heat and directs the resulting thermal energy toward the cooking area.

• What are common signs of an infrared burner problem?

  Uneven heating, delayed ignition, irregular flame patterns, reduced heat output, or visible burner damage can indicate a burner problem.

• Why is stable burner operation important in a cheese melter?

  Stable burner operation helps maintain consistent heat output for reliable melting, browning, broiling, and finishing.

• What is the benefit of infrared heating in commercial cooking equipment?

  Infrared heating provides direct, concentrated thermal energy to the cooking area, making it suitable for surface-focused cooking and finishing applications.
